Newhaven Display TFT Displays

Newhaven Display TFT (Thin-Film Transistor) Displays are active-matrix LCD modules with full RGB color screens. These Newhaven Display screens exhibit bright, vivid colors and can show fast animations, complex graphics, and crisp custom fonts, with the option for resistive or capacitive touchscreens.

Resistive touchscreens offer lower production costs and are ideally suited for use with a stylus. Capacitive touchscreens are highly sensitive to touch, do not require a stylus, and support multi-touch applications.

Applications

  • Audio/video
  • Automotive/transportation
  • Consumer
  • Controls/HVAC/security
  • Industrial/machinery
  • Lottery/casino
  • Medical
  • Military
  • POS/retail/vending
  • Telecom/communication

Videos

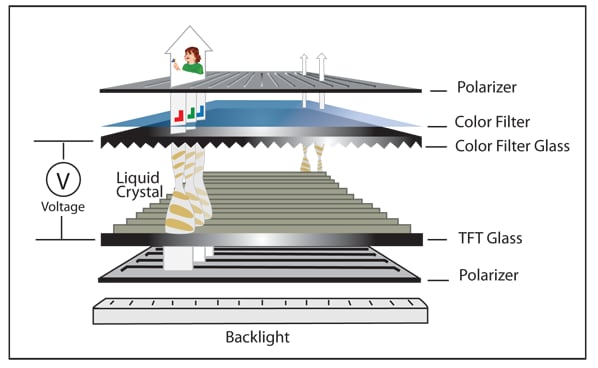

TFT Technology

Newhaven Display TFT Displays

Related Products

Newhaven Display COG & TFT LCD Displays

Wide range of ISO 9001 certified, RoHS compliant displays to suit a variety of applications.

Learn Moretungkol sa Newhaven Display COG & TFT LCD Displays View Productskaugnay ng Newhaven Display COG & TFT LCD Displays

Newhaven Display COG Displays

Feature a display controller IC etched directly into the glass rather than on an external PCB.

Learn Moretungkol sa Newhaven Display COG Displays View Productskaugnay ng Newhaven Display COG Displays

Newhaven Display Mountable TFT LCD Modules

3.5", 4.3", 5", 7" & 10" variants with resolution of 1024 x 600, 320 x 240, 480 x 272, or 800 x 480.

Learn Moretungkol sa Newhaven Display Mountable TFT LCD Modules View Productskaugnay ng Newhaven Display Mountable TFT LCD Modules

Newhaven Display Arduino Breakout Board Modules

Streamline prototyping and integration with 2.4″ and 2.8″ IPS TFT displays.

Learn Moretungkol sa Newhaven Display Arduino Breakout Board Modules View Productskaugnay ng Newhaven Display Arduino Breakout Board Modules
View Results ( 121 ) Page
Numero ng Piyesa Datasheet Diagonal Resolusyon Resolusyon ng Display - Mga Pixel Uri ng Interface Touch Panel Laki ng Module - W x H x T Supply Voltage ng Pagpapatakbo
NHD-1.5-240240AF-CSXP NHD-1.5-240240AF-CSXP Datasheet 1.5 in 240 x 240 SPI Resistive Touch Panel 35.32 mm x 32.52 mm x 2.25 mm 3.3 V
NHD-1.5-240240AF-CSXP-T NHD-1.5-240240AF-CSXP-T Datasheet 1.5 in 240 x 240 SPI Resistive Touch Panel 35.32 mm x 32.52 mm x 3.45 mm 3.3 V
NHD-10.1-HDMI-A-RSXP-CTU NHD-10.1-HDMI-A-RSXP-CTU Datasheet 10.1 in 1024 x 600 HDMI, I2C Capacitive Touch Panel 261.98 mm x 145.6 mm x 14.89 mm 3.3 V, 7.5 V
NHD-5.0-HDMI-N-RSXP NHD-5.0-HDMI-N-RSXP Datasheet HDMI Without Touch Panel
NHD-1.8-128160EF-CTXI# NHD-1.8-128160EF-CTXI# Datasheet 1.8 in 128 x 160 8-bit Parallel Without Touch Panel 34.7 mm x 46.75 mm x 2.25 mm 2.8 V
NHD-7.0-800480EF-ATXL#-T NHD-7.0-800480EF-ATXL#-T Datasheet 7 in WVGA 800 x 480 24-bit RGB Resistive Touch Panel 165 mm x 104 mm x 4.7 mm 3.3 V
NHD-10.1-1024600BF-ASXP NHD-10.1-1024600BF-ASXP Datasheet 10.1 in 1024 x 600 24-bit RGB Without Touch Panel 235 mm x 143 mm x 5.2 mm 3.3 V, 12 V
NHD-10.1-1024600BF-LSXP NHD-10.1-1024600BF-LSXP Datasheet 10.1 in 1024 x 600 LVDS Without Touch Panel 235 mm x 143 mm x 5.2 mm 3.3 V, 12 V
NHD-5.0-HDMI-N-RTXL NHD-5.0-HDMI-N-RTXL Datasheet 5 in WVGA 800 x 480 HDMI Without Touch Panel 120.7 mm x 75.8 mm 5 V
NHD-2.4-240320CF-BSXV-FT NHD-2.4-240320CF-BSXV-FT Datasheet 2.4 in QVGA 320 x 240 SPI Resistive Touch Panel 60.26 mm x 42.72 mm x 2.55 mm 3 V
Inilathala: 2019-06-27 | Na-update: 2026-03-10
