NXP Semiconductors S32K EVB Evaluation Boards

NXP S32K EV Evaluation Boards are cost-effective evaluation platforms and development systems for quick application prototyping and demonstration. These NXP eval boards feature the S32K116 and S32K118 microcontrollers for general-purpose automotive applications. The microcontrollers also have Arm® Cortex®-M0+ cores and CAN/CAN-FD controllers. The S32K116 has 128KB of Flash and a security module complying with SHE specifications and is offered in 32QFN and 48LQFP packages. The S32K118 has 256KB of Flash and a security module complying with SHE specifications and is offered in 48LQFP and 64LQFP packages. Both packages support an ambient temperature range from -40°C up to +125°C.

Features

  • Small form factor
  • Arduino™ UNO footprint-compatible with expansion shield support
  • Onboard connectivity for CAN, LIN, UART/SCI
  • Integrating an SBC (UJA1169) and LIN PHY (TJA1027)
  • Easy access to the MCU I/O header pins for prototyping
  • Potentiometer, RGB LED, 2x push buttons, and 2 touchpads
  • Integrated open-standard serial and debug adapter (OpenSDA) with support for several industry-standard debug interfaces
  • Flexible power supply options (micro USB or external 12V supply)

Videos

{"PlayerType":"Playlist","BrightcoveId":"1757189416040717639"}

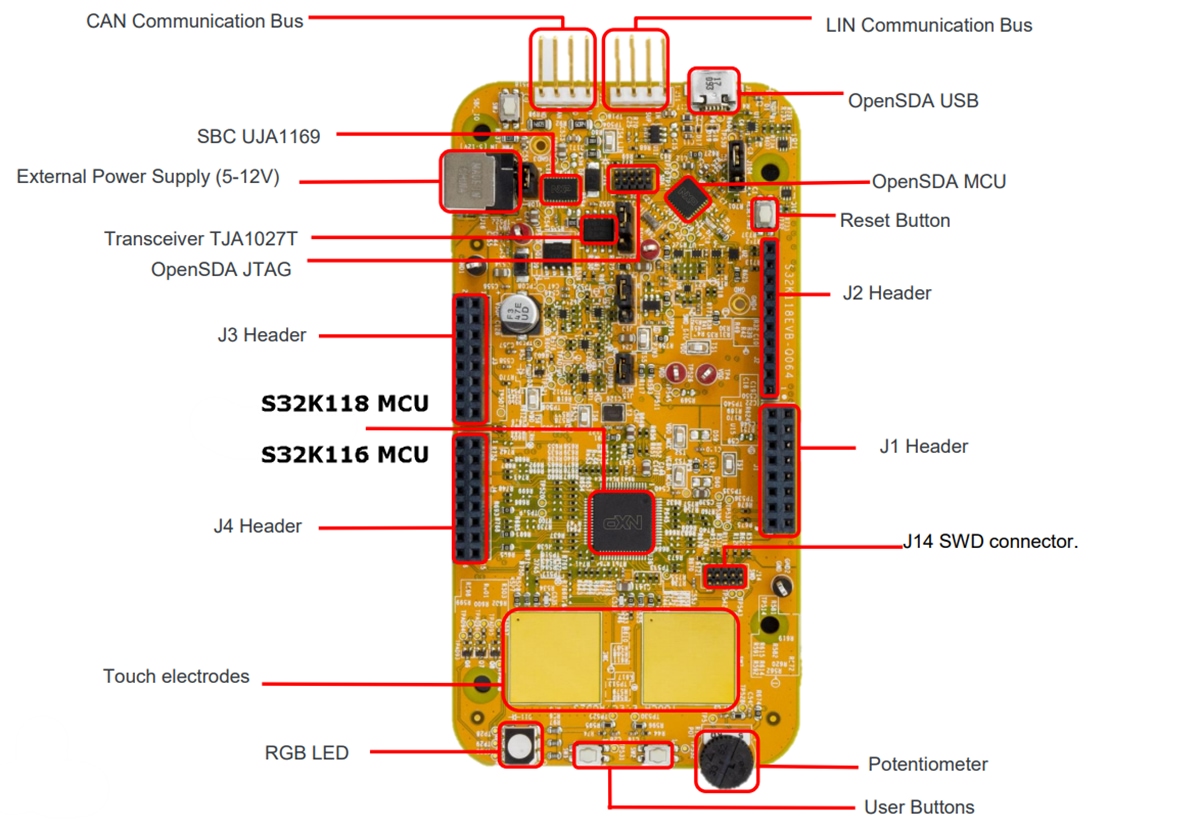

Board Layout

Chart - NXP Semiconductors S32K EVB Evaluation Boards
