Texas Instruments TMDSHVRESLLCKIT Developer's Kit

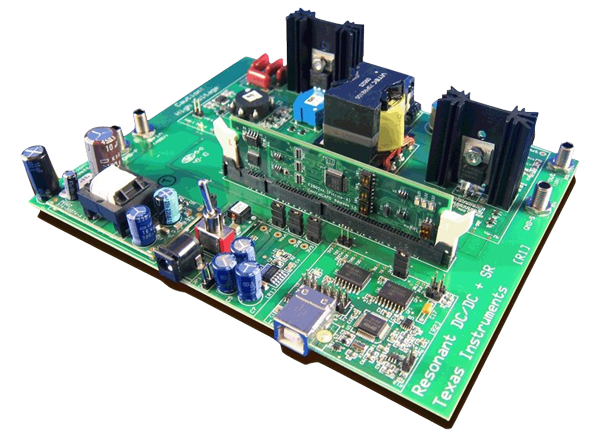

Texas Instruments TMDSHVRESLLCKIT C2000™ High Voltage Resonant LLC Developer's Kit is designed to show users how to quickly implement a digitally controlled Resonant LLC topology DC/DC converter. This high-voltage kit is intended to support voltage levels that are commonly used in end equipment designs, allowing designers to experiment with multiple control methods.

This Texas Instruments kit is an ideal companion to the primary side TMDSHVBLPFCKIT, providing a complete evaluation platform for RFC AC input stages to a high-efficiency DC/DC output stage. The TMDSHVRESLLCKIT HV Resonant LLC Developer's Kit also features onboard USB JTAG emulation, requiring no external JTAG emulator. This TI kit includes an F28027 controlCARD and a quick-start experimenter's GUI.

Features

  • High Voltage Resonant LLC converter controlCARD based EVM
  • Quick Start Graphical User Interface
  • 380-400V DC input, 500W 12V regulated DC output
  • Supports Synchronous Rectification output control
  • Four different feedback methods for experimentation
  • Lossless current sensing circuit for fault protection
  • Onboard USB JTAG emulation
  • Open-source hardware and software with full documentation
  • Detailed lab and discussion of Resonant LLC Principles

Kit Contents

  • F28027 controlCARD
  • HV Resonant LLC Development Kit
  • Software Installation CD
